4-way reachLearn more about 2.0~3.0t X Series Electric 4-Way Reach Truck →

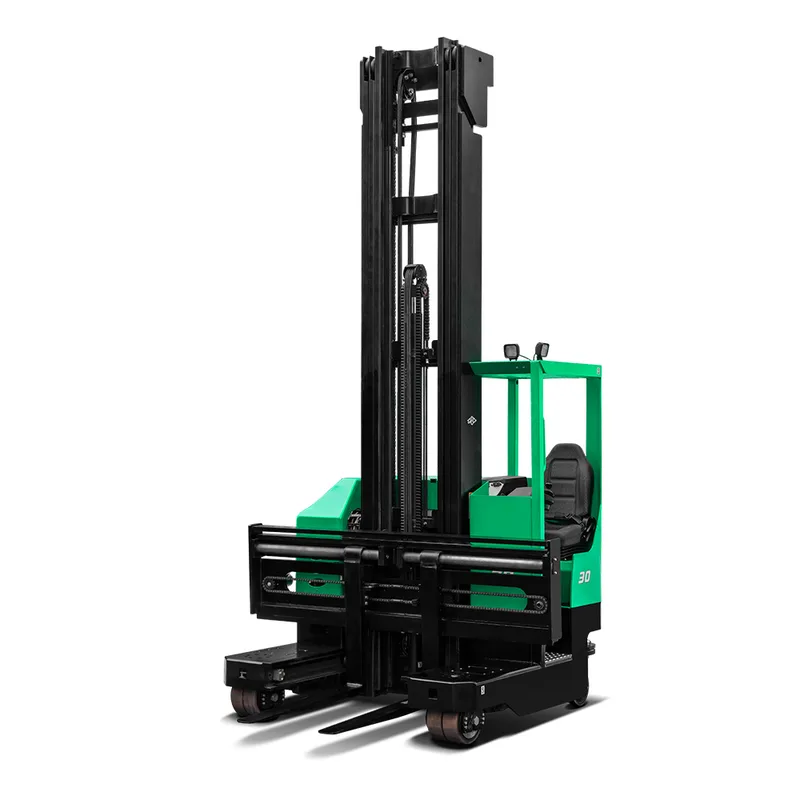

2.0~3.0t X Series Electric 4-Way Reach Truck
2,000 ~ 3,000 kgLoad capacity
4,000 ~ 8,500 mmLift height

All-directional reach truck for handling long, bulky materials in narrow aisles.

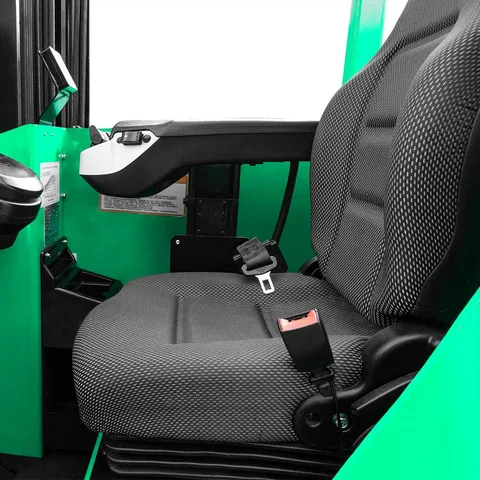

Ergonomic fingertip hydraulic controls provide smooth, responsive operation, enabling precise load handling and enhanced operator productivity.

Built with a low centre of gravity and a robust four-point chassis design, the X Series delivers outstanding stability and confidence when handling heavy loads at height.


| Product Type | Reach Trucks |
|---|---|
| Load Capacity | 2000-3000kg |
| Lift Height | 4000~8500 mm |
| Service Weight | 4080~4320 kg |
| Dimensions (L/W/H) | L: 2351mm * W: 1850mm * H: 2960mm |
| Turning Radius | 1873mm(Straight mode)/1850mm(Sideways travel mode)/1460mm(360º travel mode) |
| Gradeability | 12% |
| Travel Speed | 11.5/12 km/h |
| Battery Voltage (STD) | 80V/250Ah |
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.



Send us your load, lift height and where it'll run, and we'll match the exact unit and price.
