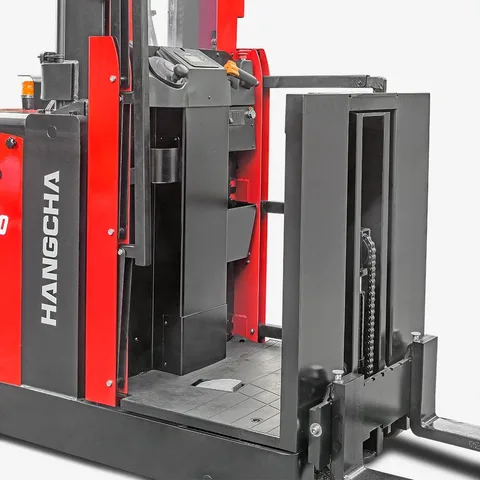

The order picker's operational circuit activates only when all side barriers are fully lowered (confirmed by magnetic sensors), ensuring 100% compliance with ANSI B56.1 safety standards during elevated work.

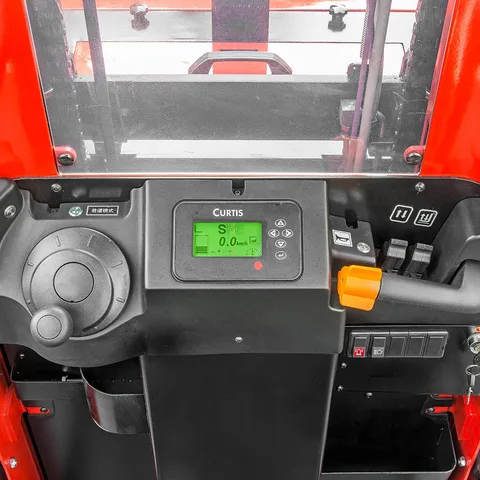

Accident Prevention
The FREE lever's dual-sensor technology (pressure + position detection) eliminates false starts, reducing misoperation risks by 70% while maintaining single-handed control efficiency during picking tasks.

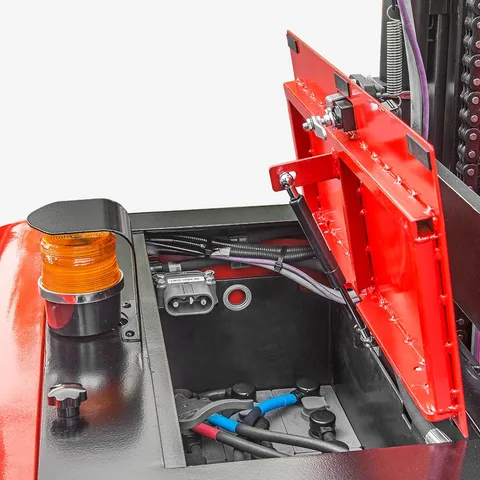

Service Accessibility
A tool-less rear hood release (3 quick-latch points) provides instant access to hydraulic, motor, and control components, cutting maintenance downtime by 50% compared to bolted designs.

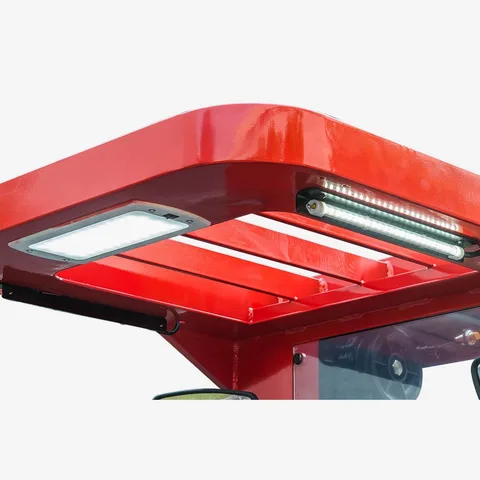

Workspace Illumination
The 360° LED top lamp delivers 2000-lux, shadow-free lighting (IP67 rated) with 50,000-hour lifespan, ensuring optimal visibility even in dark warehouse racking aisles.

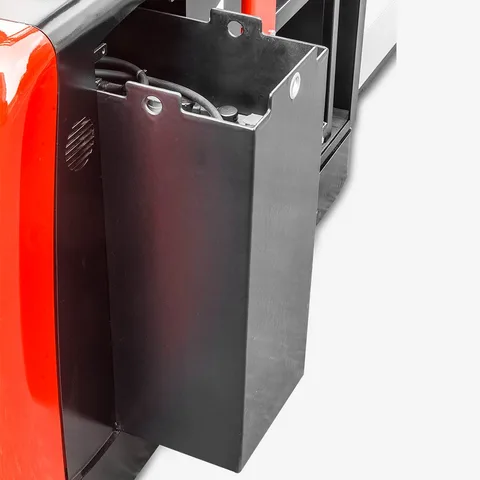

Battery Side Roll-Out Design
The innovative slide-out battery tray enables tool-free, 60-second swaps with color-coded connectors, reducing downtime by 80% compared to traditional models while maintaining IP54-rated protection during replacement.
Features
See it in action
Other specifications
Product Type
E-Trucks, Order Pickers
Load Capacity
1,000kg
Lift Height
3000-5000mm
Service Weight
2,516~2,805kg
Dimensions (L/W/H)
L: 3110 * W: 900~1000 * H: 2310~3060mm
Turning Radius
1610mm
Gradeability
5%
Travel Speed
9km/h
Battery Voltage (STD)
24V/625~700Ah
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.
