The multi-function tiller with EPS (Electric Power Steering) enables effortless, single-handed operation with adaptive responsiveness for precise load handling in confined spaces.
Scissor Fork Mechanism
A robust scissor-type extension system provides smooth forward fork movement, enabling dual-mode operation for both standard and non-palletized loads with exceptional stability.

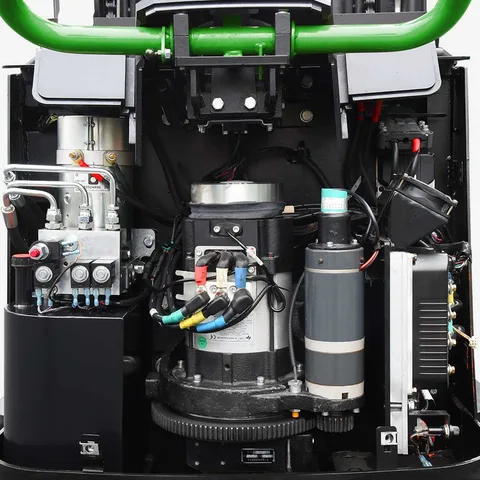

Maintenance Accessibility
The fully openable back cover offers tool-free access to critical components, significantly reducing service downtime and simplifying routine maintenance procedures.
Precision Load Handling
Proportionally controlled fork movement ensures millimeter-accurate positioning, while adjustable speed settings optimize both delicate placements and high-efficiency cycling.
Features
Other specifications
Product Type
Lithium E-Trucks, Reach Trucks
Load Capacity
1200-1600kg
Lift Height
2500-5500mm
Service Weight
1870-2000kg
Dimensions (L/W/H)
2295*1225*2040mm
Turning Radius
1682mm
Gradeability
10%
Travel Speed
5.5/6.0 km/h
Battery Voltage (STD)
24V/280-340Ah
Specifications shown are indicative ranges. Exact model, configuration and pricing are confirmed by our team, talk to us and we'll match the right unit to your site.
